Relays & Timers
Relay Comparison Chart

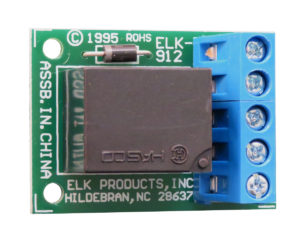

ELK-912 |

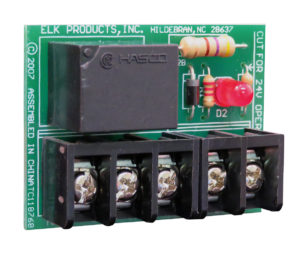

ELK-912B |

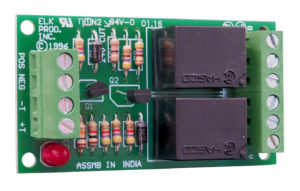

ELK-924 |

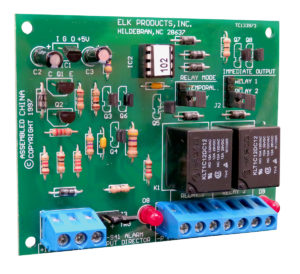

ELK-941 |
ELK-960 |
|
| Type/Description | Compact | 12/24 Volt | Sensitive Trigger | Alarm Output Director | Relay with Timer |
| Purpose | General purpose switching of devices or high current loads | General purpose switching of devices or high current loads | Use with low current triggers for switching of devices and high current loads | Allows single output control to activate 2 separate relays to provide steady voltage to 2 devices | Economical and flexible with timer for all purpose use |
| Operating Voltage | 12 VDC | 12 or 24 VDC | 12 or 24 VDC | 12 VDC | 12 to 24 VDC |
| Current Draw | 30 mA | 35 mA | 60 mA | 96 mA | 40 mA |
| Trigger Voltage | - | - | 5-24 VDC Positive or Negative |
9-14 VDC Positive or Negative |
4.5-24 VDC Positive or Negative |
| Relay Contact Rating | 7A @ 28VDC, or 10A @ 125VAC |
7A @ 28VDC, or 10A @ 125VAC |
7A @ 28VDC, or 10A @ 125VAC |
7A @ 28VDC, or 10A @ 125VAC |
7A @ 28VDC, or 10A @ 125VAC |
| Relay Contact Type | SPDT Form “C” Dry Contacts |
SPDT Form “C” Dry Contacts |
DPDT Form “C” Dry Contacts |
2) SPDT Form “C” Dry Contacts |
SPDT Form “C” Dry Contacts |
| Status LED | NO | YES | YES | YES | YES |
| Money Saving "Snap Apart" Multi-Packs |
YES ELK-91212 (12 Pack) |
YES ELK-912B6 (6 Pack) |
YES ELK-9244 (4 Pack) |
NO | NO |
| Size | 1.1” x 1.55” | 2” x 1.5” | 1.5” x 2.75” | 4.4” x 3 | 3” x 2.2” |
| Lifetime Limited Warranty |
YES | YES | YES | YES | YES |
