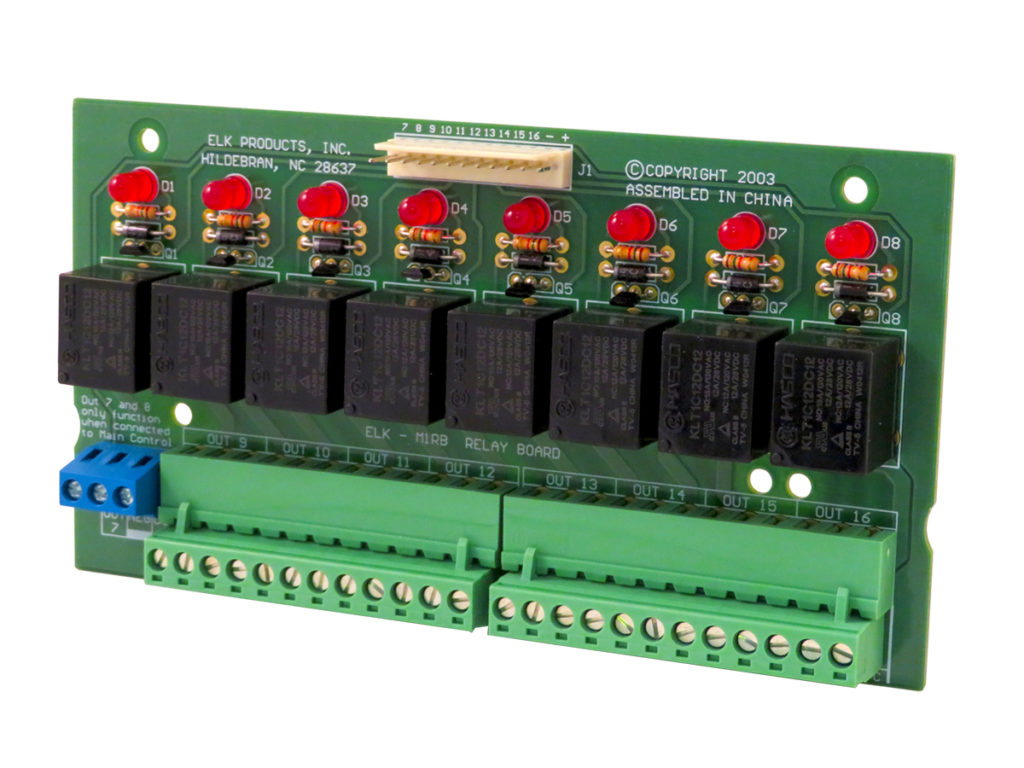

Relay Conversion Board E27 & M1
ELK-M1RB
May be plugged directly into an E27, M1G, M1EZ8, M1XOV, or M1XOVR to convert the voltage outputs into SPDT relays rated for 7A @ 30 VDC, 10A @ 125 VAC.
Product Details
- 8 Form "C" Relays, SPDT Dry Contact
- Heavy Duty Contact Rating
- Low Current Draw.
- Great For General Purpose Switching
- Plug-in "Removable" Terminal Blocks
- LED Status Indicators on all 8 Relays
- Twelve (12) Conductor Plug-in Wire Harness
- Mounts in Enclosure using ELK-SWG Glides
- Diode Protection Across Relay Coil.
- Contact Ratings: 7 Amps @ 28 VDC, 10 Amps @ 125 VAC
- Wire Harness Length: 24"
- Operating Voltage: 12 Volts DC Nominal
- Current Draw: 0 mA idle, 250 mA Max.
- Size: 6" x 3.25" x .75" H
Resources
- M1 Relay Board
- 4 pieces of Double Sided Tape
- ELK-SWG Circuit Board Mounting Glides 2/pack
- Relay Adapter, 12 Conductor Cable Assembly
- Instructions
