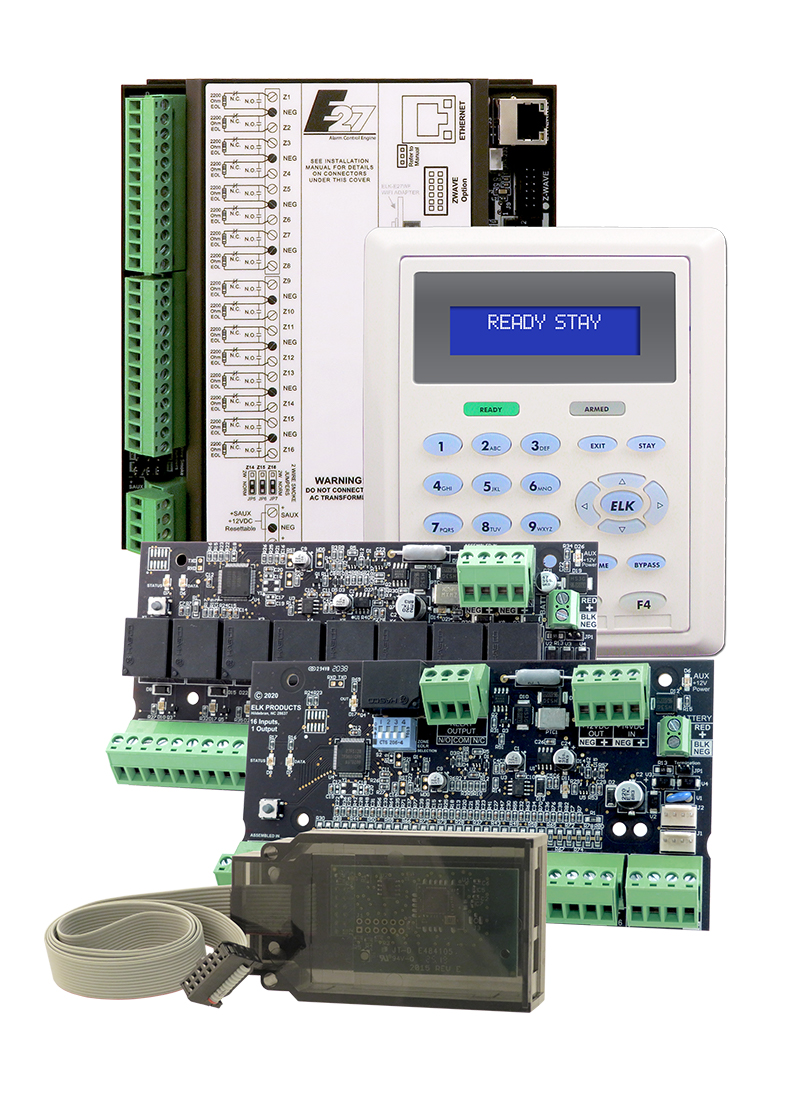

E27 Alarm Engine

ELK’s E27 Alarm Engine^® is a modern IP and cloud-centric hybrid control system with robust hardwire and wireless capabilities. An on-board Ethernet port and optional Wi-Fi adapter provide secure connectivity with multi-layered authentication and encrypted communications. E27 offers powerful automation with simplified scheduling and a robust rules engine for unrestricted customization. Easy integration with Z-Wave devices provides convenient automation and real-time control of lights, thermostats, locks, and garage doors.

E27 offers a proper upgrade path to bring modern features to existing security systems. It is also an incredible solution for new installations, ensuring the integrity of the system by keeping the system core in a secure location.

Frequently Asked Questions

Alarm Engine Integration Partners

ZONES/INPUTS

Up to 128 Total
Hardwired, Wireless, or Hybrid
16 On-board

KEYPADS

Up to 8

ON-BOARD ETHERNET

For connectivitiy and reporting

AREAS/PARTITIONS

Up to 8

SMOKE DETECTORS

4-wire (any input)
2-wire (inputs 14, 15, & 16)
and Wireless

WI-FI SUPPORT

with optional Wi-Fi Adapter

USERS

Up to 199
with customizable
authorizations

OUTPUTS

2 Alarm Outputs
1 Form "C" Relay
10 Voltage Outputs
Expandable to 32

HISTORY LOG

Up to 500 Events
with Date & Time Stamp
Includes Users/Zone Info

USER GROUPS

Up to 10

Z-WAVE SUPPORT

64 Lights
8 Door Locks
4 Thermostats
4 Garage Doors

POWER SUPPLY

2.5 Amp Total
Master Power Switch & Low Battery Cutoff
Up to 18Ah Backup Battery

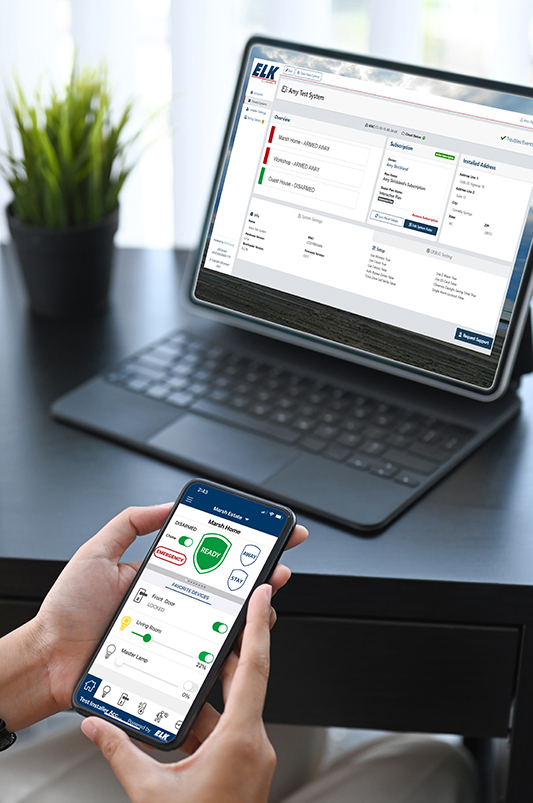

ElkConnect®

ElkConnect® brings the power of the platform to life. This advanced app and cloud portal streamlines system configuration, management, and control with powerful tools and a consistent user experience. A robust automation environment fuels the Alarm Engine with simplified customization and unrestricted creation of rules.

Both the ElkConnect app and portal provide a credential based experience. Installers get configuration and management tools. Users get interactive services* and an intuitive interface for full control of the system.

* Interactive services and remote access require an active monthly subscription plan. See elkconnect.com for more details.

Learn More About ElkConnect

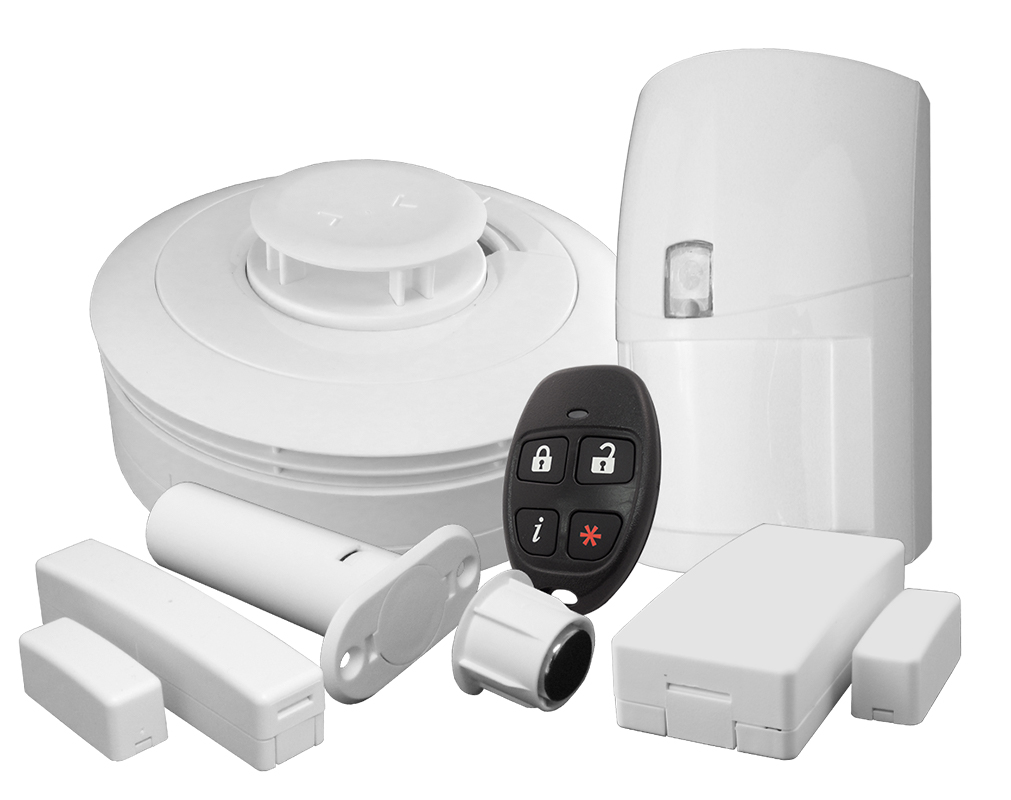

WIRELESS EXPANSION

In keeping with ELK’s focus on security, we designed wireless sensors to be more secure and reliable. For budget conscious installations, ELK offers the economical 319 Series Wireless Sensors. These sensors are designed for years of reliable performance and feature MaxOut™ Technology to increase coverage and battery life.

When increased security is a must, choose ELK's Two-Way Wireless technology, which is encrypted and defends against hacking. Utilizing true, two-way communication with the wireless sensors, ELK has incorporated innovative features to enhance security and life safety.

Learn More About ELK Wireless Sensors
